Observation Deck

Two observation decks were added by adding two additional oak planks to provide a platform approximately 30" wide. A 2x6 railing was added to one span by extending the piers to a 36" height with 2x4's bolted to the 4x4 vertical supports.  A 3/16" cable with turnbuckles was added as shown to provide additional support to the structure.

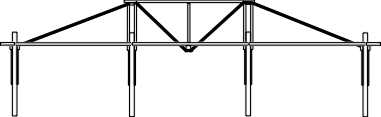

Design detail of the observation deck


Side view of deck located at the 150' point in the catwalk.  Note the old property marker wire running just under the deck.  The catwalk is offset from the property line by about 6'

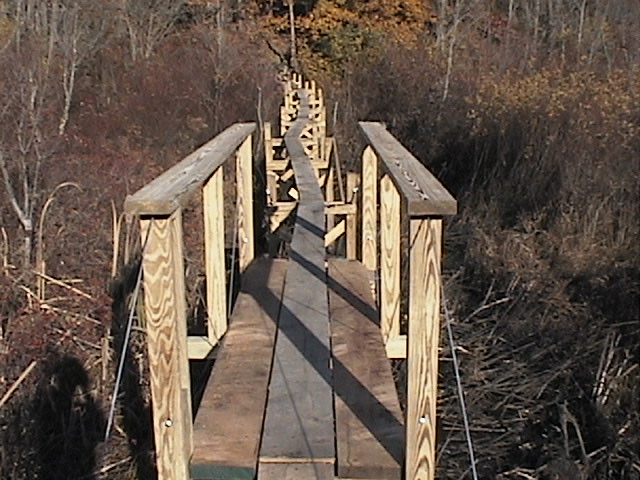

Topside view of the observation deck
